Diaphragm Metering Pumps

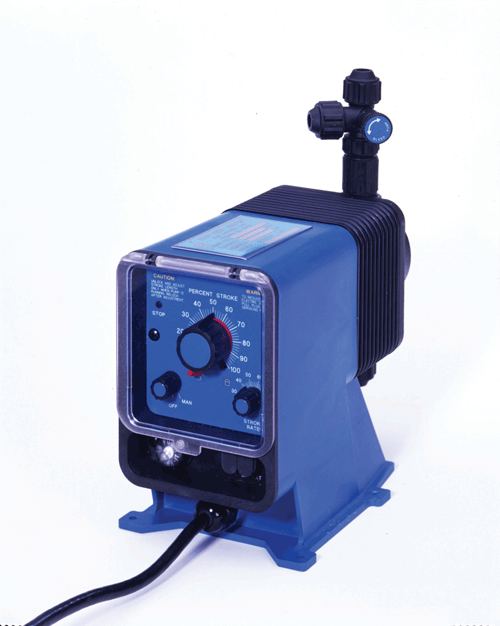

Jaeco Series E Electronically Pulsed Diaphragm Metering Pumps (3 to 500 GPD)

Features/Benefits

• For low-flow applications where flexibility, accuracy, compact design and economy are important.
• Stroke length is manually adjustable for a turn-down ratio of 10:1.
• Stroke rate is manually adjustable for a turn-down ratio of 10:1.
• Stroke can be controlled automatically on some models.
• Single ball check valve, standard on both suction and discharge side of the pump, provides accurate metering and fast response. Valve ball turns with fluid flow, constantly presenting a new face to the seat, and is therefore self-cleaning.
• Weather-resistant enclosure.
• Transparent, hinged control panel cover.
• Economical to purchase, run and maintain.
• Electronic circuitry means fewer moving parts.
• Comes with everything needed to start injecting chemicals: foot valve, suction and discharge tubing, injection valve and bleed valve with return tubing.
• Accuracy of ± 3% at steady state.

Materials of Construction

Diaphragm: PTFE faced Hypalon®
Head and fittings: Glass filled polypropylene
Valve Balls: Ceramic
Power Cord: 6 foot 3-wire with ground
Seats & O-rings Hypalon®

Options

• Automatic, proportional adjustment to follow a 4-20mA process signal.
• Automatic, externally-paced adjustment to accept a contact closure.

Accessories

• Safety relief valve
• Back pressure valves
• Calibration columns
• Pulsation dampners
